Price: ₹ 1,050.00 - ₹ 250.00
(as of Jan 08,2021 04:08:03 UTC – Details)

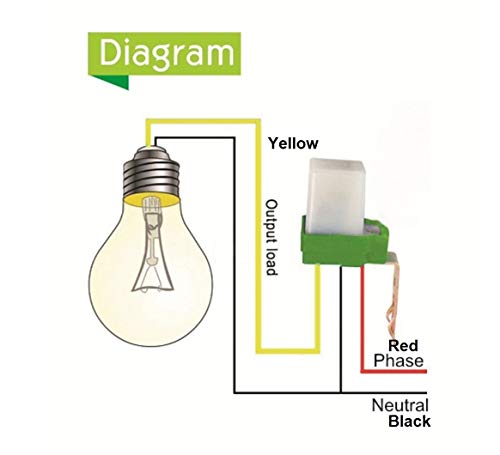

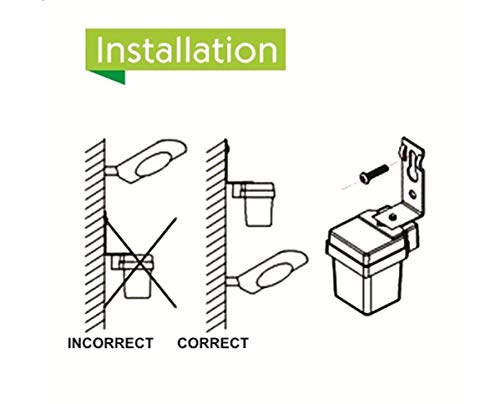

Working : As shown in the above diagram out of three wire’s Yellow : Load, Black : Neutral & Red : Phase. Connect yellow & Black to Load Application where using (i.e. Lighting) & Red and Black to 230V AC input supply. Now it is ready to operate Day/Night mode. For testing keep torch over to the Photocell load will turn ON. Feature: 1. An internal feature automatically detects environmental illumination circuit, automatically shut down during the day and at night automatically. 2. Using the three-wire system, compatible with resistive, inductive, capacitive load multiple lights. 3. The control object for LED lights, energy saving lamps, fluorescent, incandescent, exhaust fan lights. 4. With a delay function when environmental conditions change. Application: Widely used in street lighting, highways, factories, gardens, ports, airports, farms, parks, schools and other places. At dusk and dawn, according to changes in the nature of light can be automatically controlled lights turn on and off, so as to achieve the automatic street light control and energy conservation purposes. It can be easily installed bracket on wood, metal and concrete pole, and can work in any weather conditions. Because of its novel design, install, reliable, small size, light weight, easy installation, long life, low cost, etc. have been widely used in street lighting, highways, factories, gardens, ports, airports, farms, parks, schools and other places. Can also be fitted with solar lamps, or automobiles, motorcycles, electric cars and other supply voltage is 230V AC on the fixture or device, so the device can reach dark lighting or automatic opening, dawn automatically turn off Specification : Operating volt: ac 230V . Rated current:10 Amp Ambient light: 40 Lux(OFF) Working temp: -20~+40 degc Working humidity: < 93% rh
Capacity : (10 Amp) 230V AC INPUT and 230V AC OUTPUT,Working : As shown in the above diagram out of three wire’s Yellow : Load, Black : Neutral & Red : Phase. Connect yellow & Black to Load Application where using (i.e. Lighting) & Red and Black to 230V AC input supply. Now it is ready to operate Day/Night mode. For testing keep torch over to the Photocell load will turn ON.
Automatic Sensor Light Control Switch/ It can Best for outdoors use Street Light, Garden Lights, Incandescent lamp, LED lights. If you have any query fell free to contact us. Product is tested before dispatched so that the item reaches to the buyer safely and undamaged.
Longer Life No Mechanical System /Easy To Install,reliable, Small size, light weight,
Saves Electricity,Save Time . 1 Year Warranty, Customer support Number : +91 8000066255
