Product Description

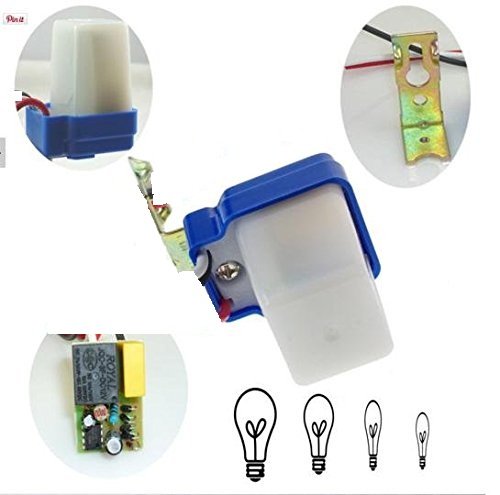

230 Volt Auto Day/night On & Off Photocell, Ldr Sensor Switch For Lighting
Blackt Electrotech day/night photocell switch is a new energy saving device which can turn on or turn off light automatically according to ambient-light. It can control the load while working at night and can be used to load light garden lights and street lights.
Use Blackt Electrotech photocell switch to operate in the day/night mode.
Can be used with street light, garden lights, incandescent lamp, led lights and all other kinds of lamps.

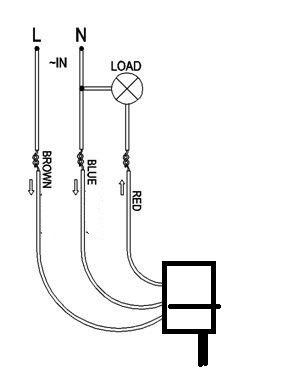

Connection wiring:
Brown : Phase
Blue : Neutral
Red : Load
Specification :
Operating volt: ac 220-250v 50hz-60hz. Rated current:6 amp Ambient light: < 5-15 lux Working temp: -20~+40 degc Working humidity: < 93% rh
Light turns on in the dark and turn off when sunlight falls on it, intelligent sensor, no need to operate manually.
1000 watts, wide light sensor, best for outdoor usage.
A new energy saving device which can turn on or turn off light automatically according to ambient-light.
Automatic sensor light control switch. Can be used with street light, garden lights, incandescent lamp, led lights and all other kinds of lamps.
Capacity : 1000 watts,wide light sensor/ best use for outdoor usage
Light turn on in the dark and turn off on daytime, intelligent sensor, no need to operate by manual

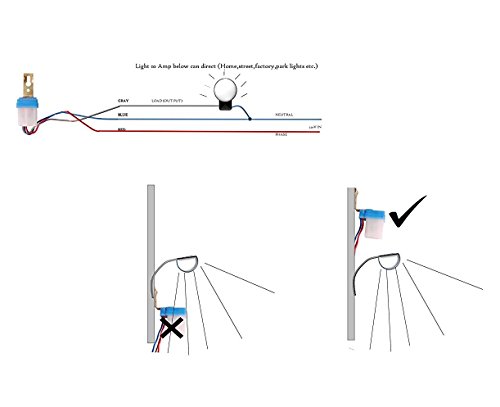

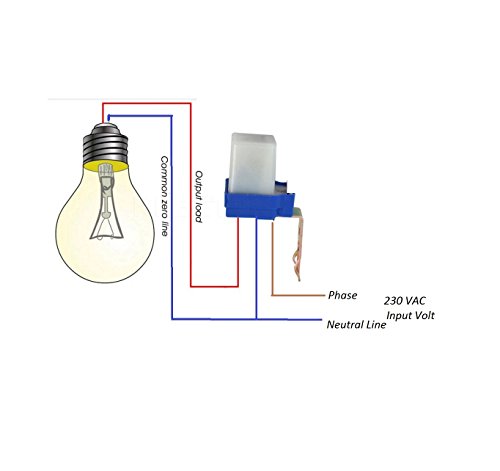

Working : as shown in the above diagram out of three wire’s red : load, blue : neutral and brown : phase. Connect red and blue to load application where using (i.e. Lighting) and brown and blue to 230 vac input supply. Now it is ready to operate day/night mode. For testing keep torch over to the photocell load will turn on
Automatic sensor light control switch/ it can use street light, garden lights, incandescent lamp, led lights
